Golden goddess

Electrifying a 50s classic

• Power
  • 90kW @ 4,000rpm
• Torque
  • 235Nm @ 0rpm
• 0-60
  • 11 secs
• Top Speed
  • 110mph
• CO2 per mile
  • 0kg

“The car is what I always dreamed of.  It’s a dream to drive; it’s so lively and silent!!!!”

After 18 years of secret development as the successor to the Traction Avant, the DS 19 was introduced on 5 October 1955 at the Paris Motor Show. In the first 15 minutes of the show, 743 orders were taken, and orders for the first day totalled 12,000, a record that stood until it was eclipsed by the Tesla Model 3.  It was the first mass production car equipped with hydropneumatic suspension, plus disc brakes, a glass fibre roof to lower the centre of gravity and a host of other innovations.  The 1967 series 3 also introduced directional headlights to a mass-produced car.

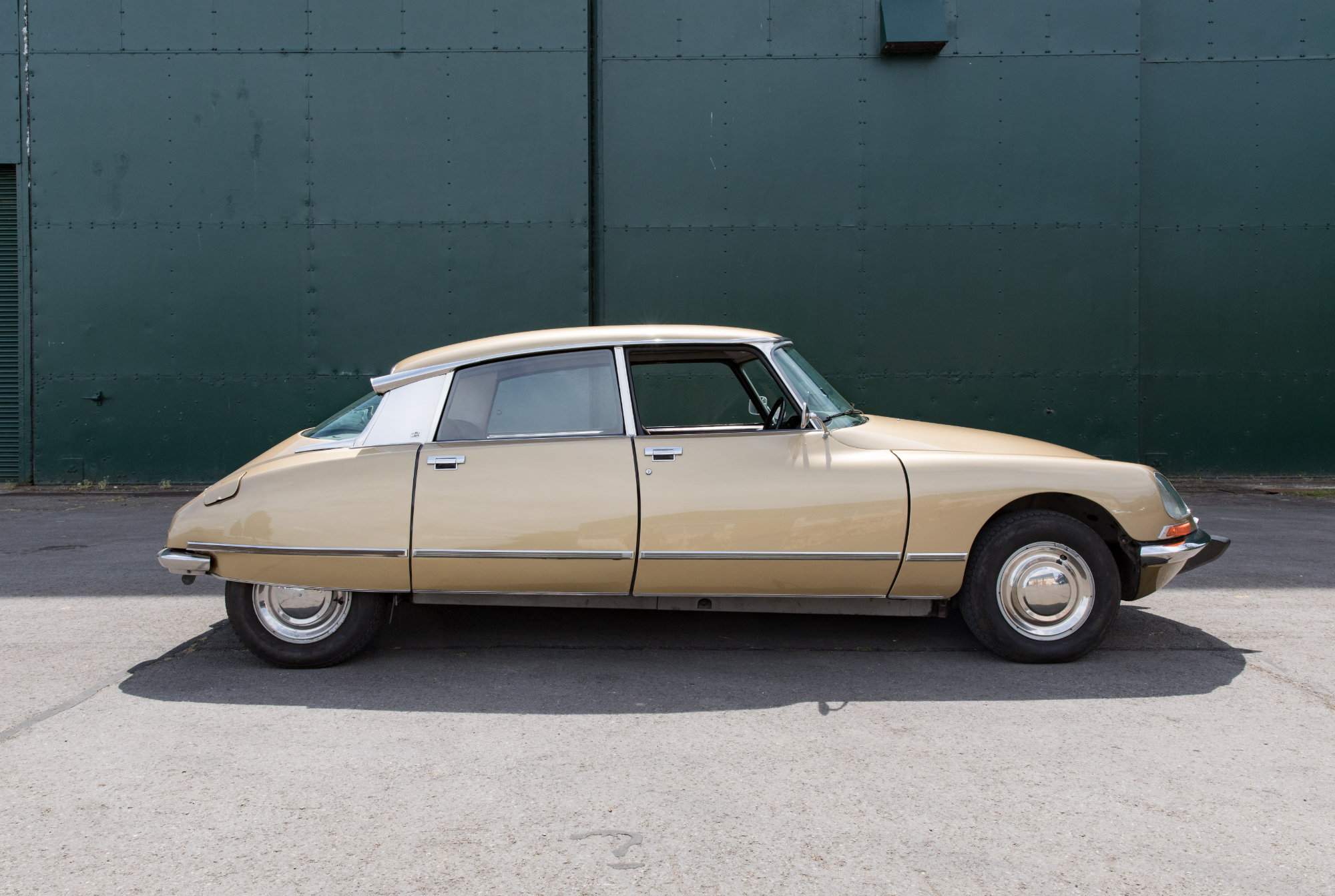

This DS 20 was made in South Africa and is a beautiful example of the Citroën “Goddess”.

What this customer wanted

This customer chose a low-voltage system to drive the vehicle via his original manual gearbox, but with an electric reverse gear.  52kWh of batteries gives about 140 miles range and is complemented by a 22kWh on-board AC charge system, to enable a full re-charge in about two hours.

The amazing innovation of the DS was never matched by its engine.  It’s a cruisy car and this electric conversion is one of our all-time favourites.  It’s not easy though – there is a chassis cross-member that separates the engine from the gearbox and the famous hydropneumatic suspension needs to be driven somehow.  We developed a new pumping system based on a C5 pump, which is extremely efficient and creates a slightly firmer ride which is a significant improvement over the original.

Electric Conversion Options

Manual gearbox

There are two possibilities here: low or high voltage.

The low voltage option uses a Hyper9 electric motor to drive the original manual or automatic clutch gearbox.  Battery options are 52kWh (no batteries in the boot) or 78kWh and you can expect about 3 miles/kWh.

The high-voltage option uses a TorqX-310 350V motor to drive the original gearbox, CCS rapid charging and 62 kWh of batteries.

High voltage with fixed reduction drive

TorqX-310 350V electric motor with a 2:1 fixed in-line reduction gear final drive and CCS rapid charging.  62kWh of batteries, though more can be fitted in the “sub boot” for additional range.

This option makes the DS what it was always meant to be: smooth, silent and effortless, floating on air.

	Petrol Engine	Electric Motor
Power:	73kW @ 5,500rpm	90kW @ 4,000rpm
Torque:	148Nm @ 3,500rpm	235Nm @ 0rpm
0-60:	13.2 seconds	11 seconds
Top Speed:	105mph	110mph
Fuel:	Petrol	Electricity
Cost Per Mile:	24p	3.5p
CO2 Per Mile:	0.44kg	0kg

Create the EV of YOUR dreams

Electrogenic conversion kits are designed to be fitted by a trained specialist with as little fuss as possible.  We supply them to partner businesses around the world and our network is growing fast. A limited number of kits will be installed at our workshop in Kidlington. If you are interested in having one of our kits fitted to your vehicle or if you are interested in fitting them, please contact us.
